T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
جزئیات محصول
| برجسته کردن | red silicone fiberglass fabric,Rogers style silicone sheet,T0.75mm fiberglass fabric roll,Rogers style silicone sheet,T0.75mm fiberglass fabric roll |
||
|---|---|---|---|
توضیحات محصول
T0.75mm x W1m x L10m Red Silicone Coated Fiberglass Fabric (Rogers Style)
Red Silicone Coated Fiberglass Fabric (Rogers Style)
Product Overview
This high-performance composite material is engineered with alkali-free fiberglass fabric as the base substrate, coated with a specialized dual-surface silicone layer. It is designed to mimic the performance characteristics of Rogers Corporation materials. One side features a thin, fully cured silicone coating for durability and release properties, while the reverse side retains a layer of uncured silicone rubber providing a tacky, self-bonding surface. Standard thickness is 0.75mm.
Key Specifications & Performance
- Dimensions: Thickness 0.75mm x Width 1 meter x Length 10 meters per roll
- Temperature Range: Excellent thermal stability for continuous use from -70°C to +280°C (-94°F to +536°F)
- Electrical Insulation: High dielectric strength (Breakdown Voltage: 20~50kV/mm), Dielectric Constant approx. 3.0~3.2
- Mechanical Properties: High tensile strength, excellent flexibility, and superior resistance to ozone, UV, oxygen, and weathering

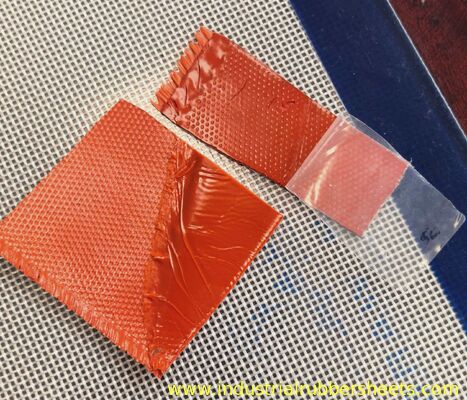

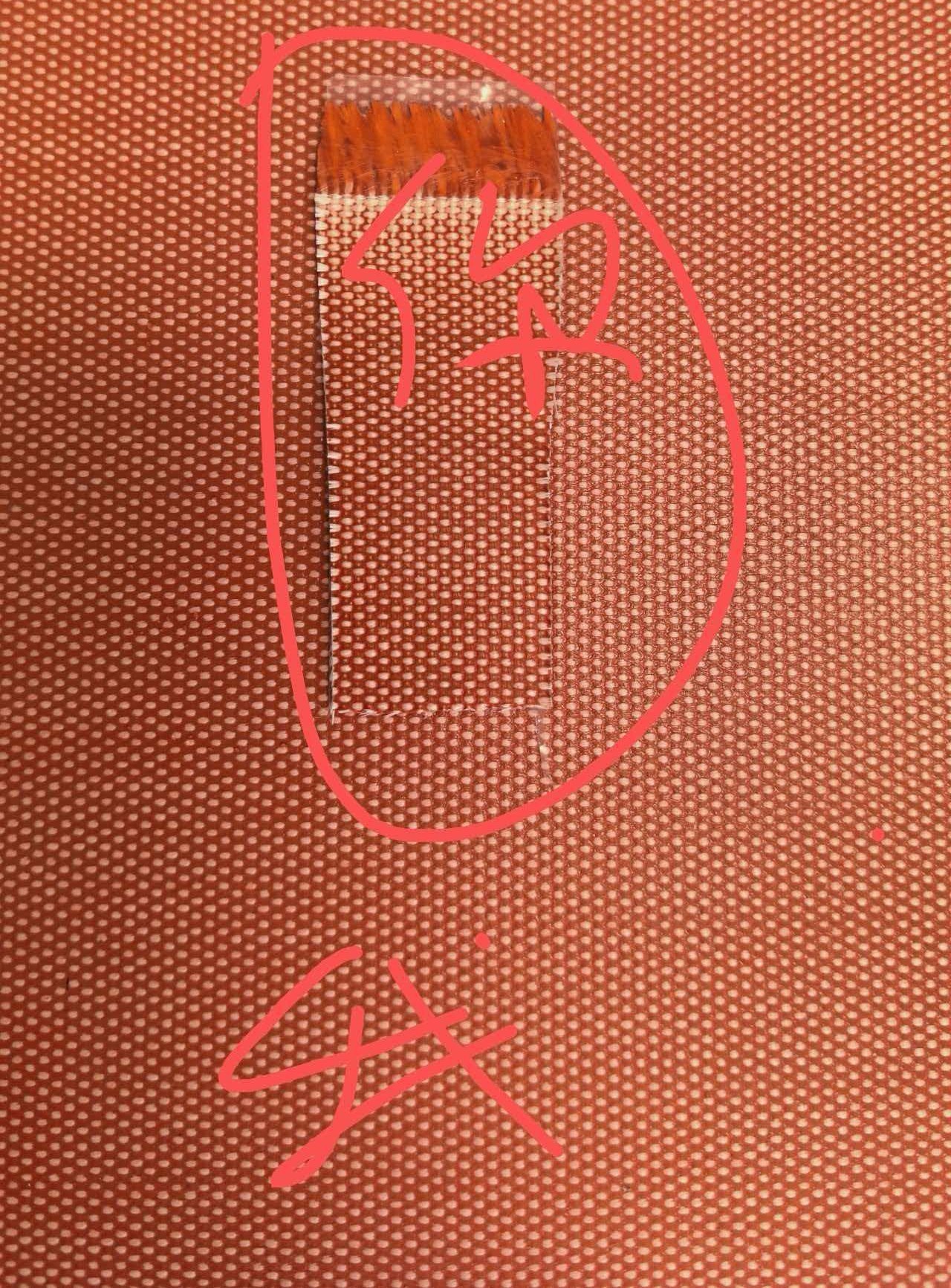

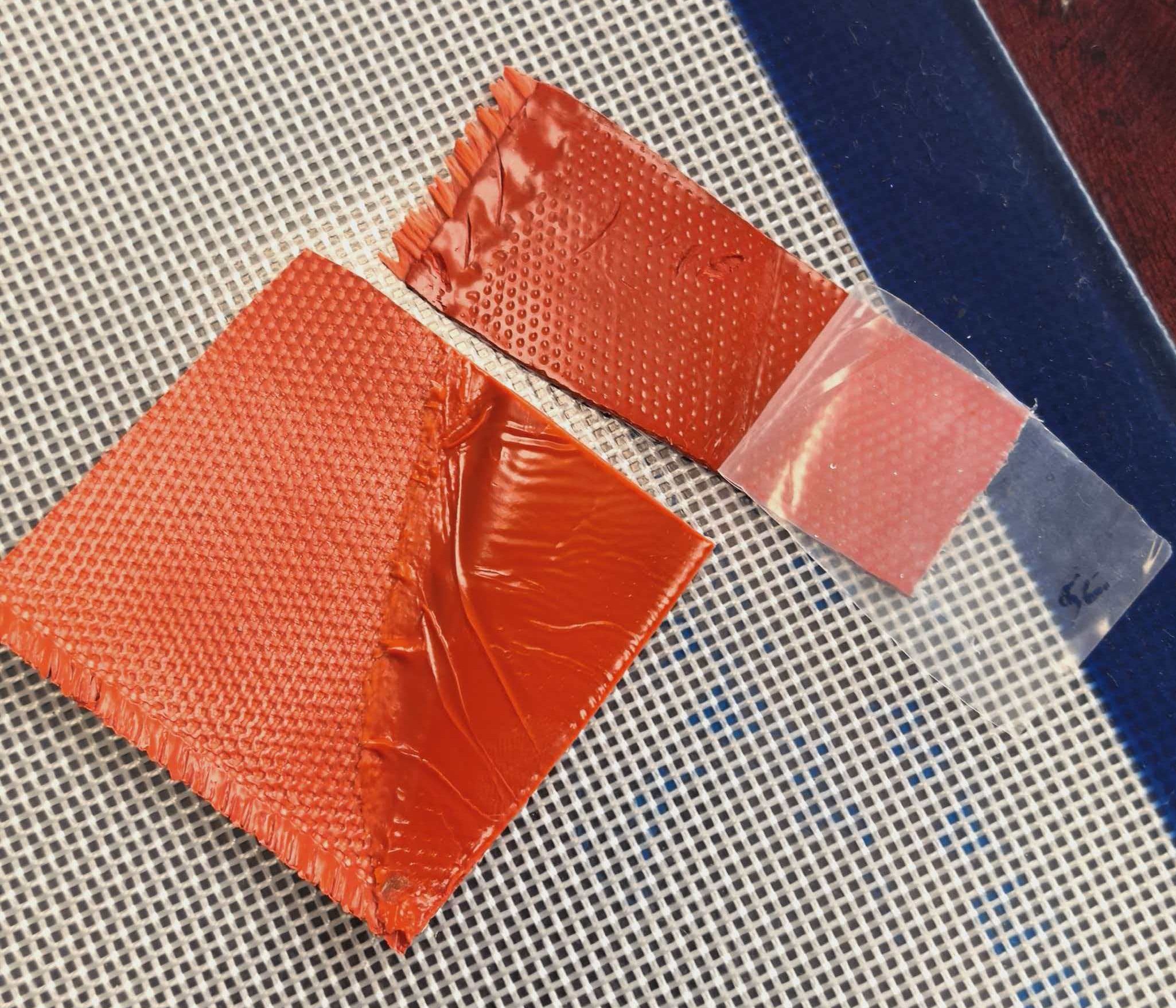

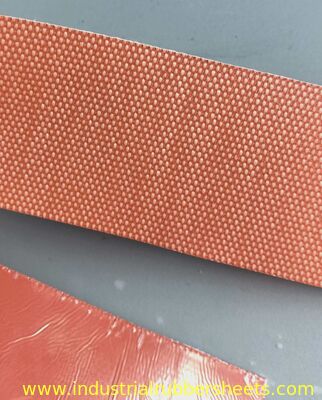

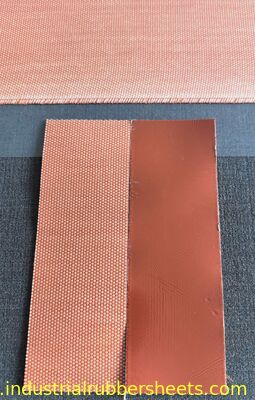

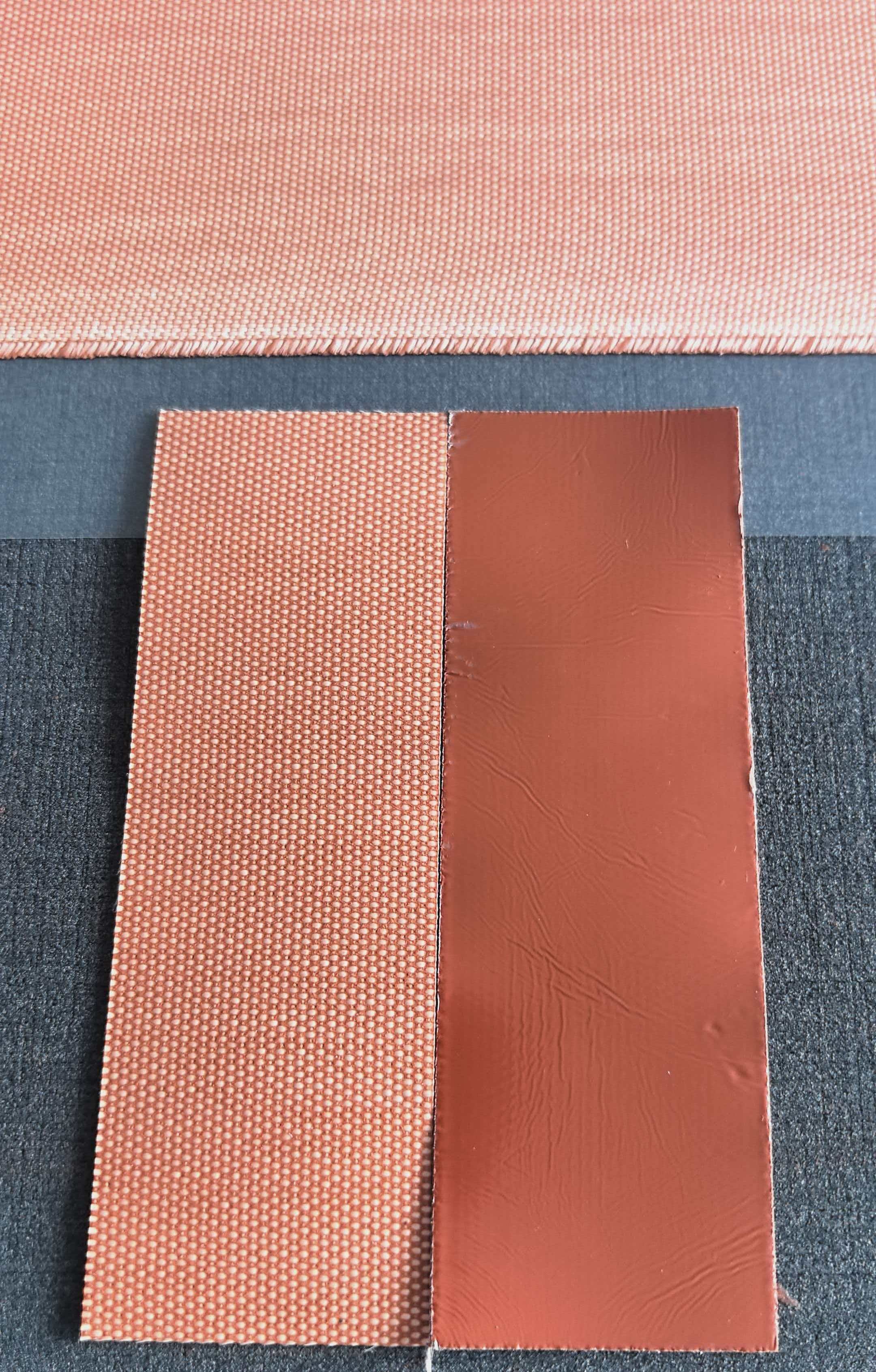

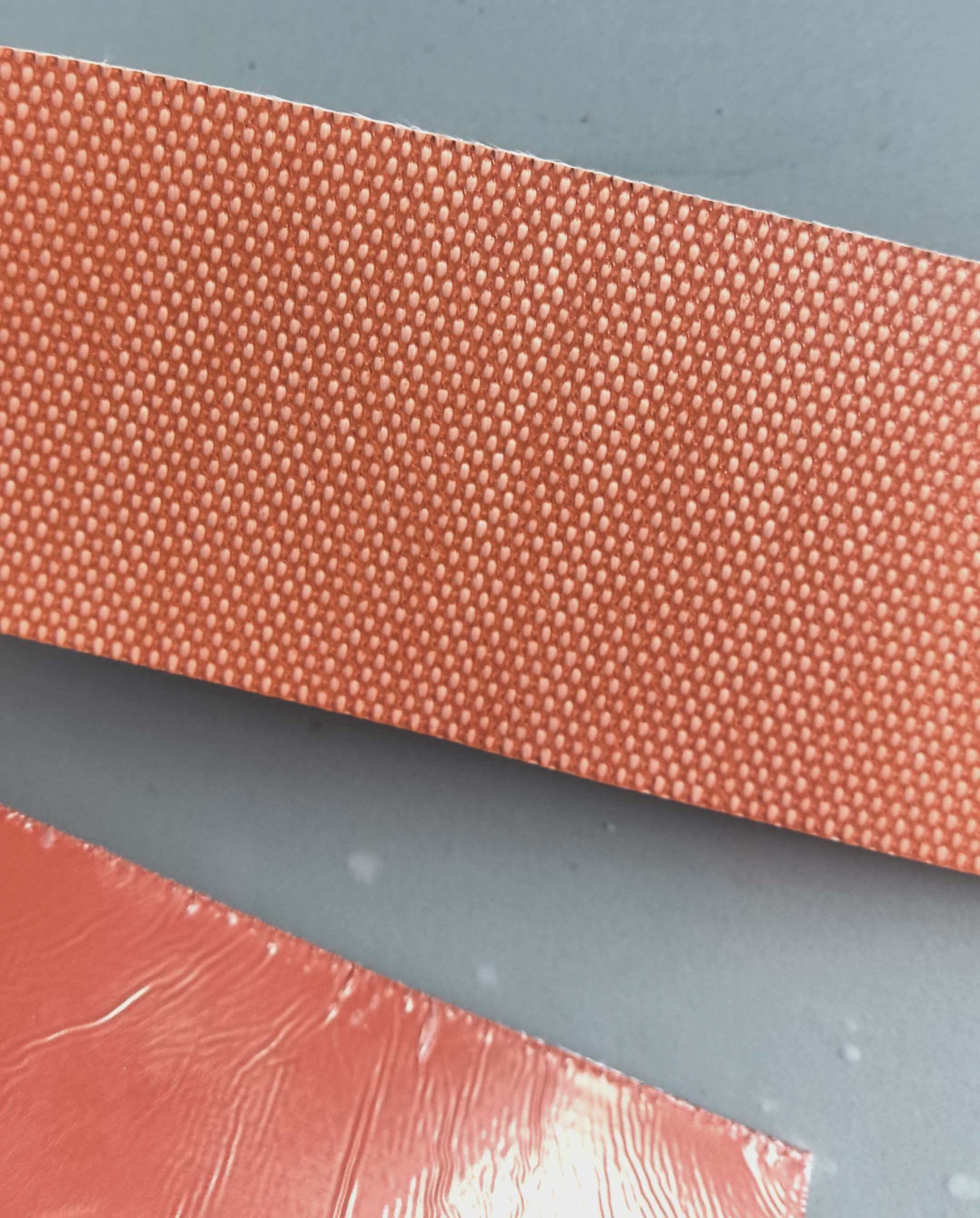

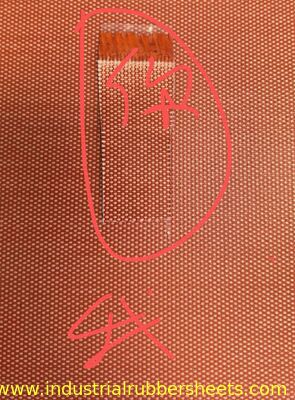

Product Gallery
Typical Applications
This "semi-cured" construction is ideal for applications requiring one-side chemical resistance or heat lamination bonding:
- Heating Element Manufacturing: Wrapping material for Ni-Cr wire heating cables, defrosters, and flexible heaters
- Molding & Press Cushioning: Used as a buffer/release sheet in the lamination of heat plates for new energy, LED manufacturing, and kitchen appliances
- Thermal Insulation & Sealing: Fabrication of removable insulation jackets, pipe wraps, and high-temperature gaskets
- Industrial Protection: Suitable for electrical insulation barriers and welding/heat shields where only one side requires contact protection
